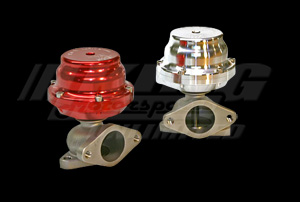

Tial F38 Wastegate

This product fits:


With a leaded safe valve and four flange options, the F38 can be configured for street or race.

- 347 Stainless Steel Alloy is used for valve and valve housing.
- High temperature silicone Nomex reinforced actuator diaphragm.
- 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resists "relaxing" at temperature to 900F (483C).
- Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing the same material used in the higher level gates for reliability and longevity.
- CNC Machined 304L 12mm thick weld flanges sold separately.
- Low Cost.
- Made is USA.
- Color anodized 6061-T651 aluminum actuator (Silver, Red, Blue, Purple, Black).
- Wastegates shipped with leaded safe valve, air fittings and stainless hardware.

Available in four configurations, Flanges are not included with the F38 Wastegate.

With the new leaded safe valve included, the F38 is good to go for the track or the street, no matter what gas you're using.

You must specify a spring rate. These are for the F38 only and are listed by Bar/PSI/Color/Outside Diameter. When ordering choose your required spring rate and actuator color from the drop down menus.

0.300 BAR   3.636 PSI   Small Yellow    1.875" OD
0.400 BAR   5.802 PSI   Small Red   1.875" OD
0.500 BAR   7.252 PSI   Small Green   1.875" OD
0.600 BAR   8.702 PSI   Small Blue   1.875" OD
0.700 BAR   10.153 PSI   Large Yellow   2.360" OD
0.800 BAR   11.603 PSI   Large Red   2.360" OD
0.900 BAR   13.053 PSI   Large Green 2.360" OD
1.000 BAR   14.504 PSI   Large Blue   2.360" OD
1.100 BAR   15.954 PSI   Lg Yellow & Sm Red*   2.360"OD
1.200 BAR   17.405 PSI   Lg Red & Sm Red*   2.360" OD
1.300 BAR   18.855 PSI   Lg Green & Sm Red*   2.360" OD
1.400 BAR   20.305 PSI   Lg Blue & Sm Red*   2.360" OD
1.500 BAR   21.756 PSI   Lg Blue & Sm Green*   2.360" OD
1.600 BAR   23.206 PSI   Lg Blue & Sm Blue   2.360" OD

*1.100 BAR to 1.600 BAR are achieved by combining 2 springs. Pressure equals the sum of the two springs.

Tial Wastegate Install Diagram (PDF)

Tial F38 Wastegate Technical Illustration w/Dims (PDF)

Not sure what spring pressure you need?
Call Mike @ 262.522.7558 ext.301
