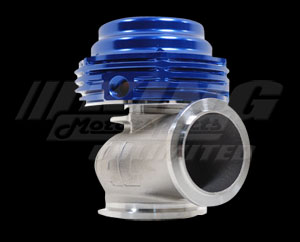

Tial MV-S Wastegate
TIAL-MVS
High temp NiCrFe based alloy is used for valve and 347SS valve housing and
will offer longer product life compared to competing designs.
This product fits:
Price:
$285.00
- High temp NiCrFe based alloy is used for valve and 347SS valve housing and will offer longer product life compared to competing designs.
- High temperature silicone Nomex reinforced actuator diaphragm.
- 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resist "relaxing" at temperature to 900F (483C).
- Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.
- All Stainless Steel hardware.
- Mating weld flanges are 304L
- Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black).
- 3 lower ports and two top ports for easy install, no need to rotate the actuator top at all, plugs included for unused ports.
-Ultra compact design fits in very tight spaces, the unit stands only 3.7" tall, more compact than any other external wastegate on the market today.
- V-Band inlet and outlet make install easy, flanges and clamps are in the box!
Included with every Tial MV-S:
MV-S Assembly
MV-S Valve Seat
Inlet V-band clamp
Inlet Flange
Outlet V-Band Clamp
Outlet Flange
2 TiAL Air Fittings
Plugs for unused air port
You must specify a spring rate. These are for the MV-S only and are listed by Bar/PSI/Color. When ordering choose your required spring rate and actuator color from the drop down menus.
0.3 BAR, 4.35 PSI, MVS Brown
0.4 BAR, 5.80 PSI, MVS Gold
0.5 BAR, 7.25 PSI, MVS Beige
0.6 BAR, 8.70 PSI, MVS Grey
0.7 BAR, 10.15 PSI, MVS Gold/Brown
0.8 BAR, 11.60 PSI, MVS Copper/Brown
0.9 BAR, 13.05 PSI, MVS Grey/Brown
1.0 BAR, 14.50 PSI, MVS Grey/Gold
1.1 BAR, 15.95 PSI, MVS Maroon/Beige
1.2 BAR, 17.40 PSI, MVS Copper/Maroon
1.3 BAR, 18.85 PSI, MVS Grey/Gold/Brown
1.4 BAR, 20.30 PSI, MVS Copper/Maroon/Brown
1.5 BAR, 21.75 PSI, MVS Grey/Maroon/Brown
1.6 BAR, 23.20 PSI, MVS Copper/Maroon/Beige
1.7 BAR, 24.66 PSI, MVS Grey/Maroon/Beige
Tial Wastegate Install Diagram (PDF)
Tial MV-S Wastegate Technical Illustration w/Dims (PDF)
Not sure what spring pressure you need?
Call Mike @ 262.522.7558 ext.301
